Getting started

2D to 3D feature

2D to 3D feature


Vizcom's new 2D Studio allows users to convert any 2D image into a 3D model. This feature is accessible to all Vizcom users.

How to Convert 2D Image to 3D Model


Step 1

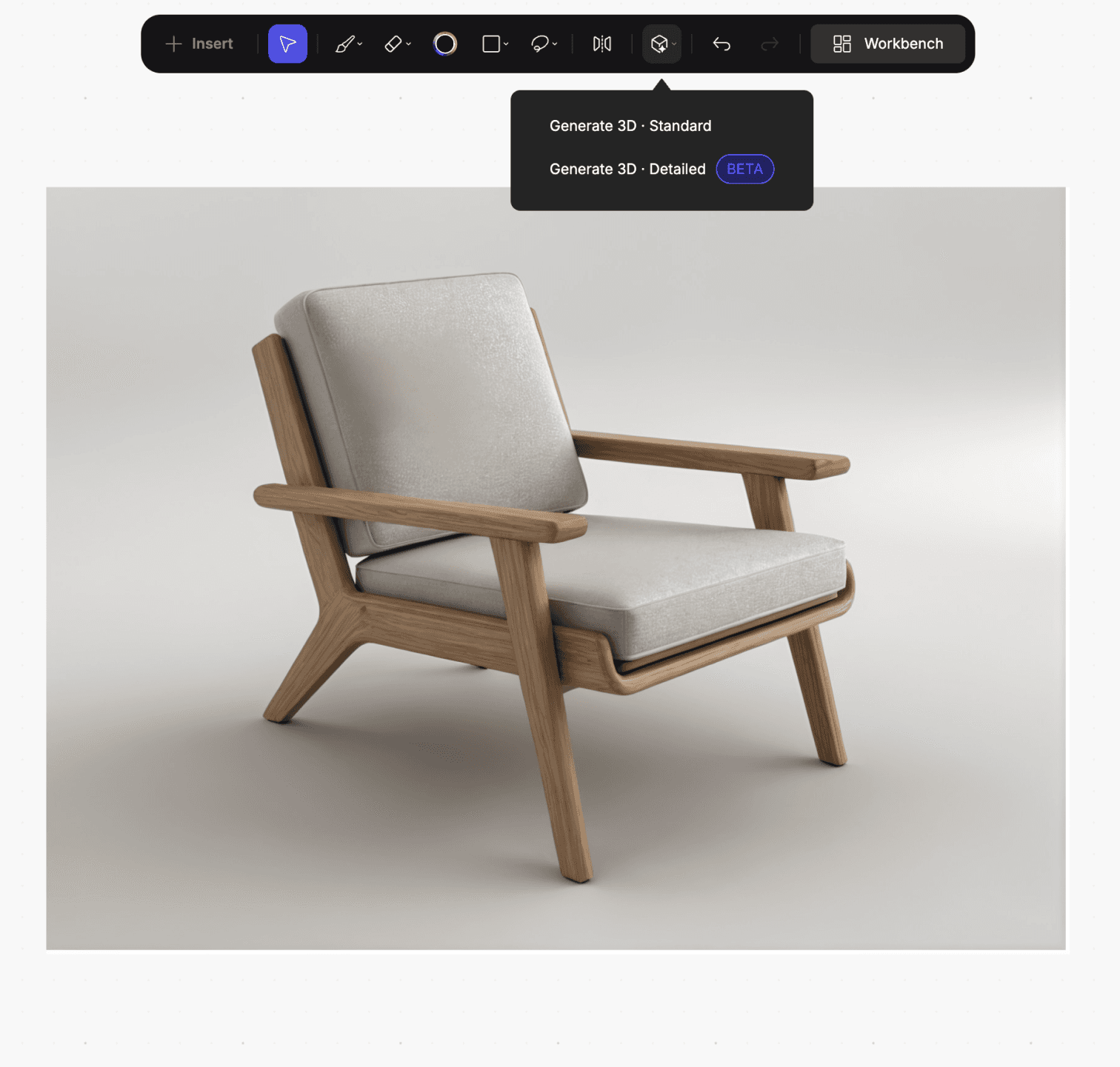

  • Have a rendering on the canvas, and find the Generate 3D icon.

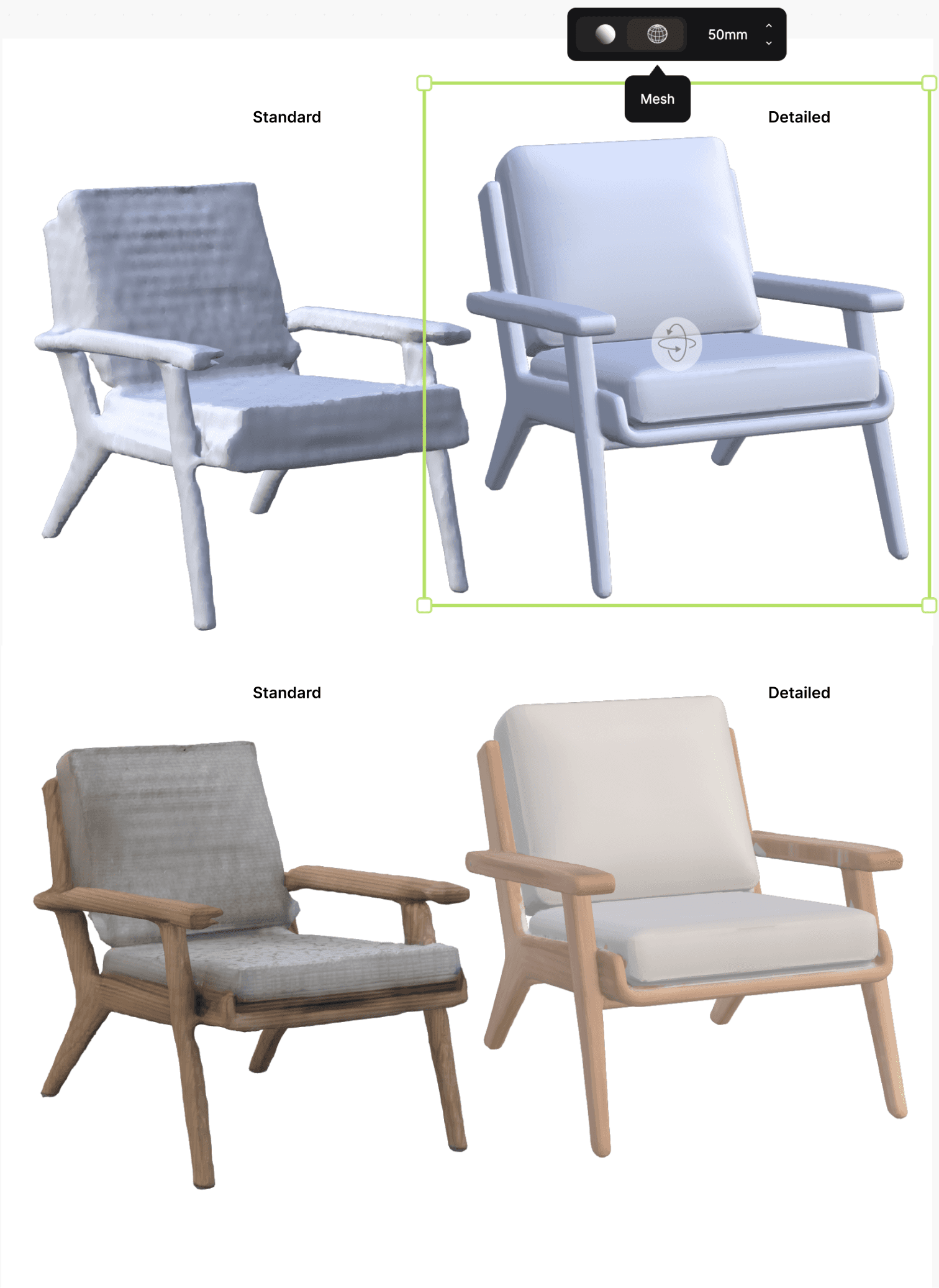

  • Choose between the Standard, or the Detailed 3D options

  • Alternatively you find the 3D generation in the layers panel as well

Step 2

  • Vizcom will create a new layer, separate the core concept image from the background, and generate the 3D model.

Step 3

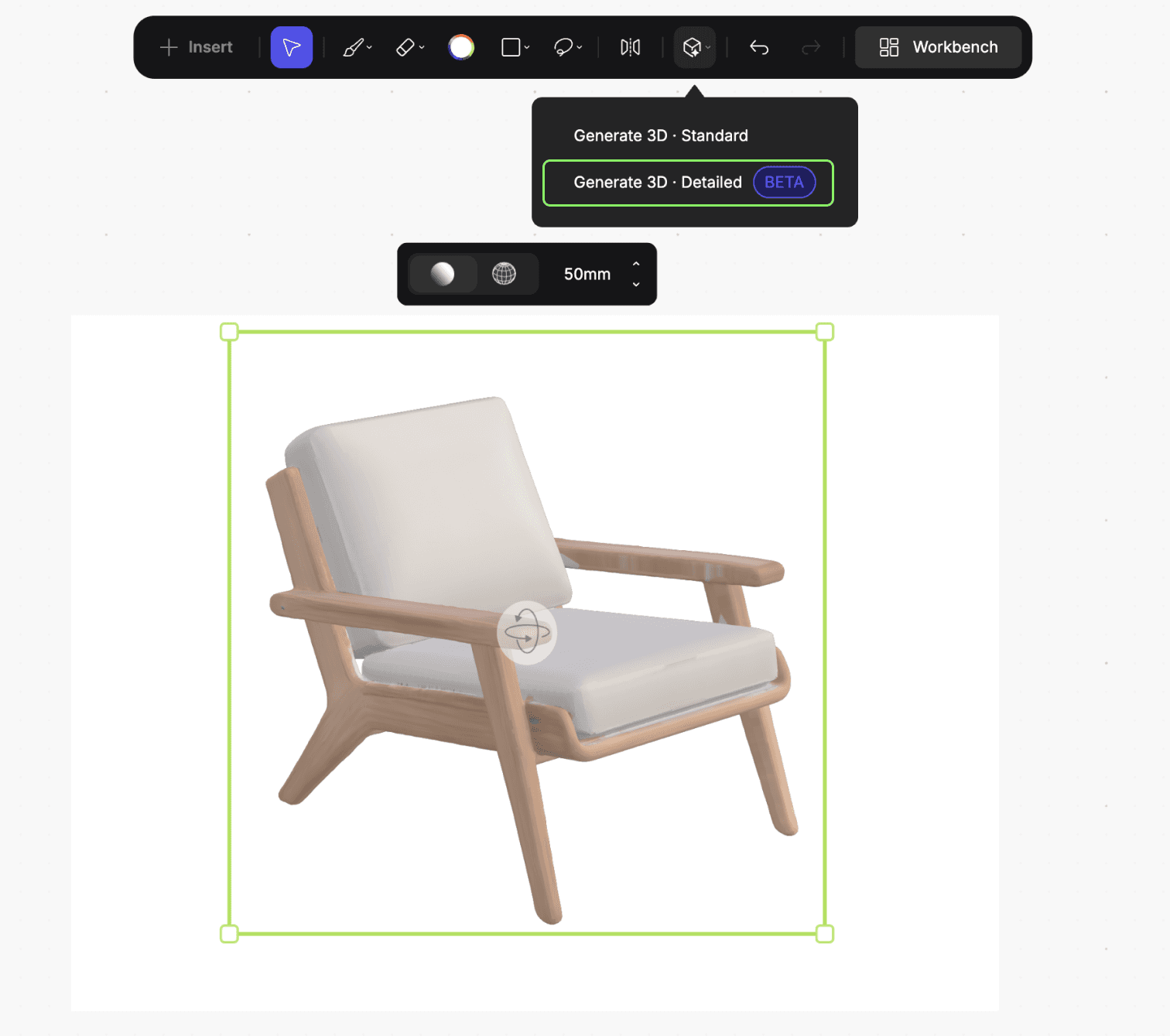

Viewing and Adjusting the Model:

  • Click the new layer after processing.

  • Use bounding box controls to scale the model.

  • Use orbit controls to inspect the model from different angles.

  • Set the focal length with the number slider

Step 4

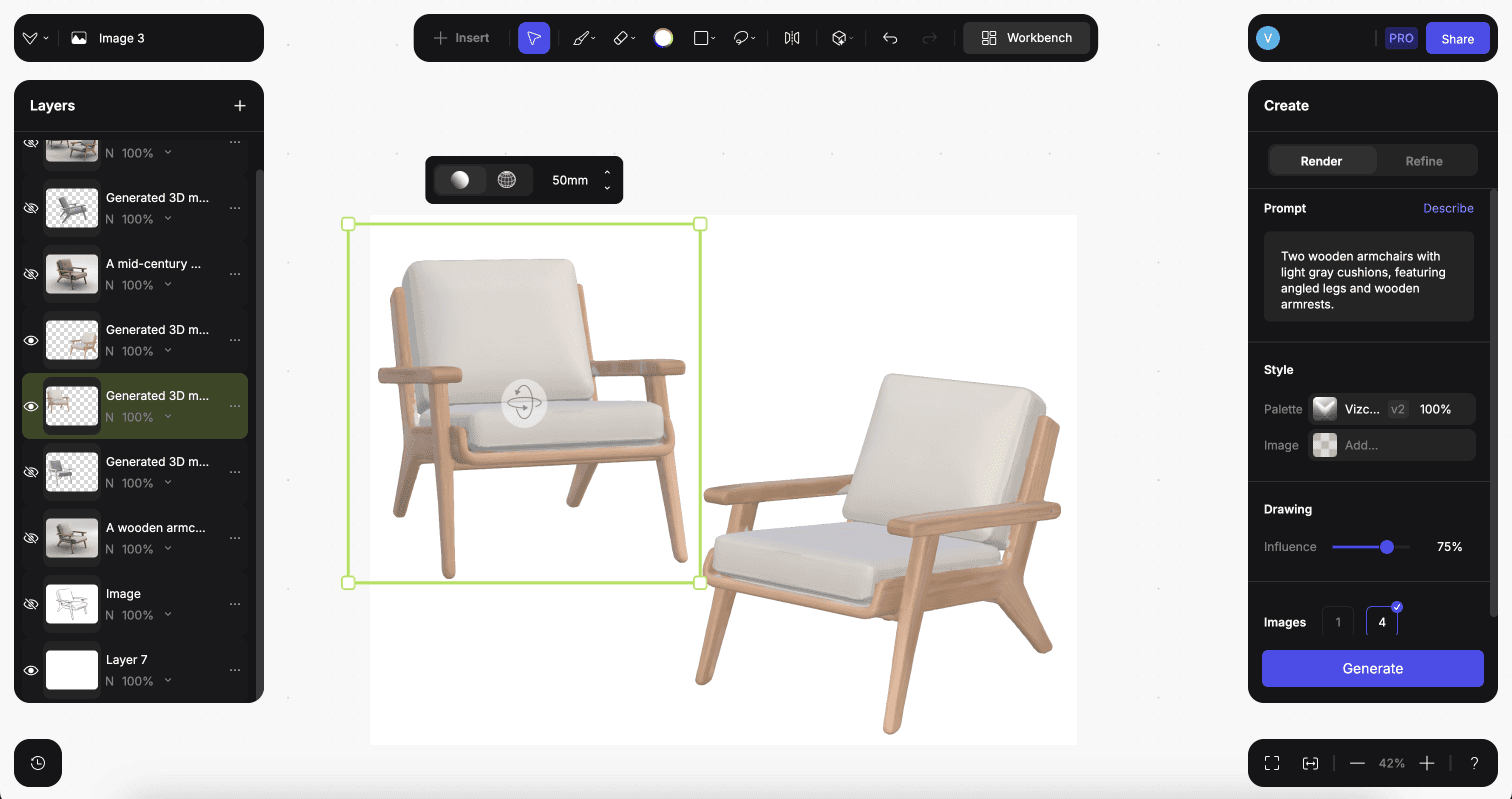

Setting up different views of the 3D model

  • Duplicate the 3D layer and set up another view on the canvas to make a rendering scene

Step 5

Use the scene to make a realistic rendering.

  • Click on the "describe" function at the prompt

  • Generate renderings in the desired style and drawing influence.

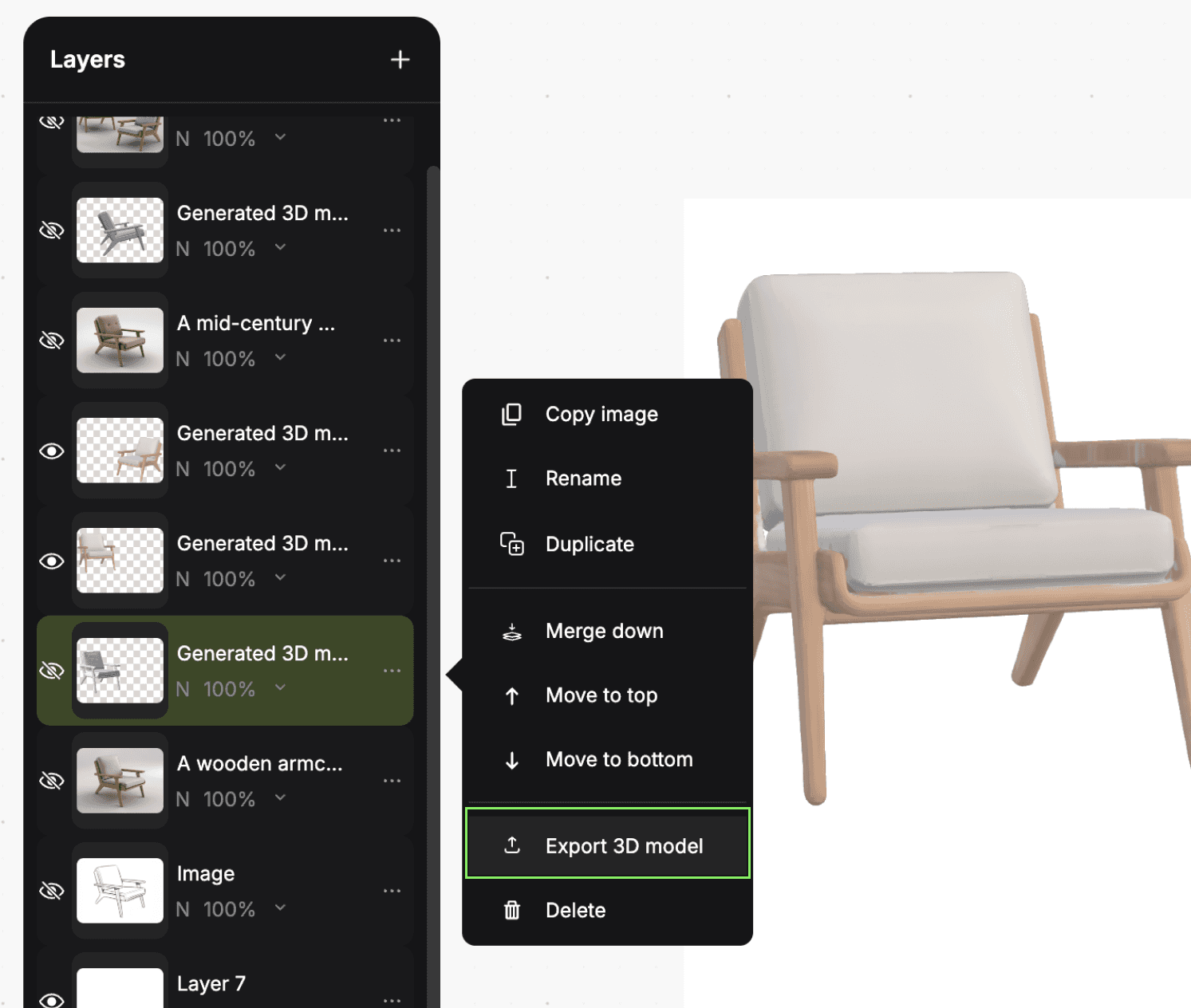

Exporting the 3D Model

You can also export the generated 3D models.
There are high density, triangulated mesh models, and exportable in many formats:

  • .glb - this will carry over textures

  • .obj

  • .stl - for 3D printing

  • .usdz - for displaying in AR on iPads
