Understanding Vizcom
Vizcom Studio Refresh - Fall 2025
The New Vizcom Studio Experience
Our refresh to Vizcom Studio introduces a redesigned workspace built for flexibility, speed, and creative flow. With new customizable layouts, a centralized AI Workflow panel, and real-time background generation, you can now create and iterate more seamlessly than ever.

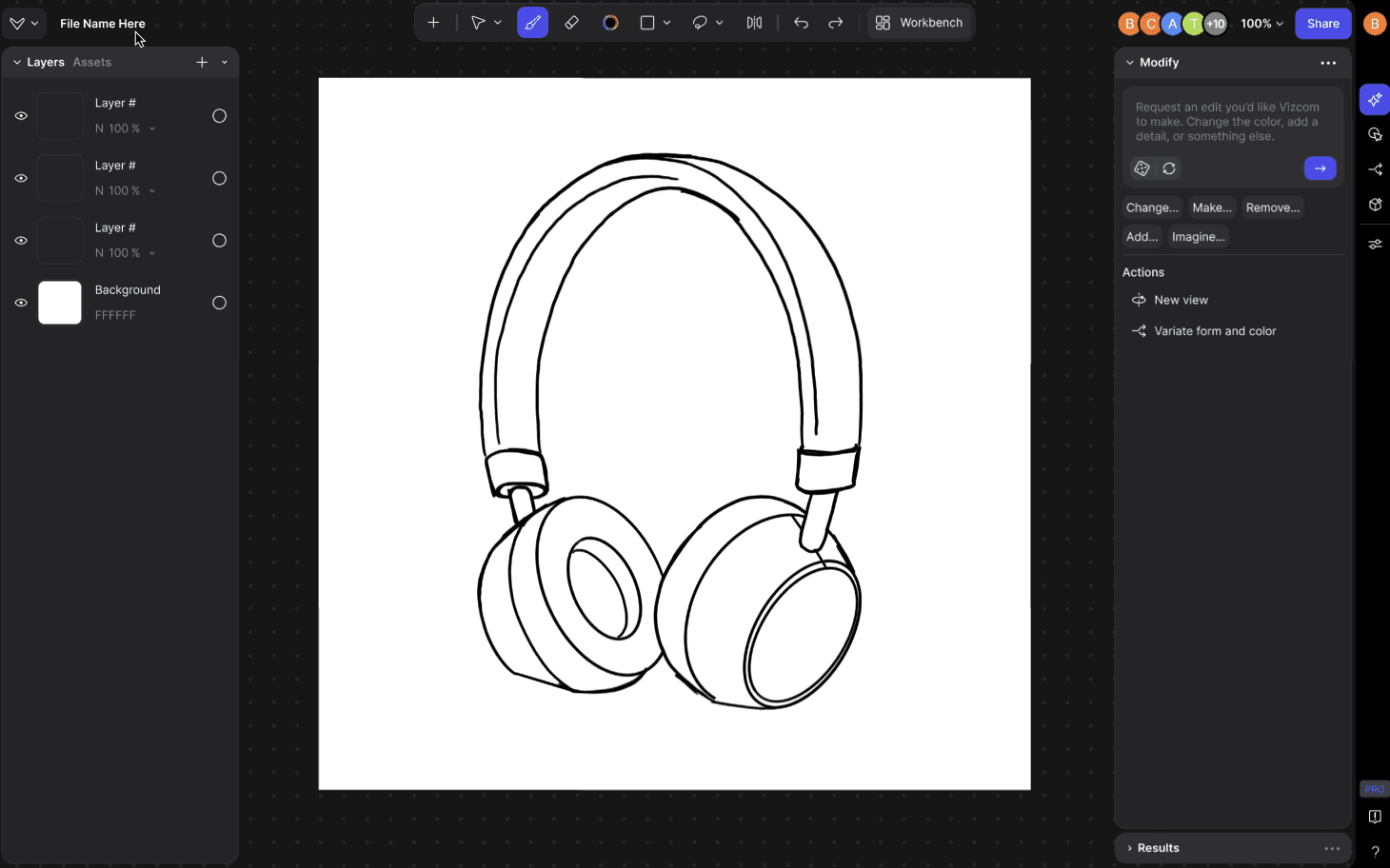

Customizing your space with Flexible Layouts
With Flexible Layouts, you can adjust your workspace to match your personal design flow.
Available Layout modes
Default: Standard layout with all key panels visible

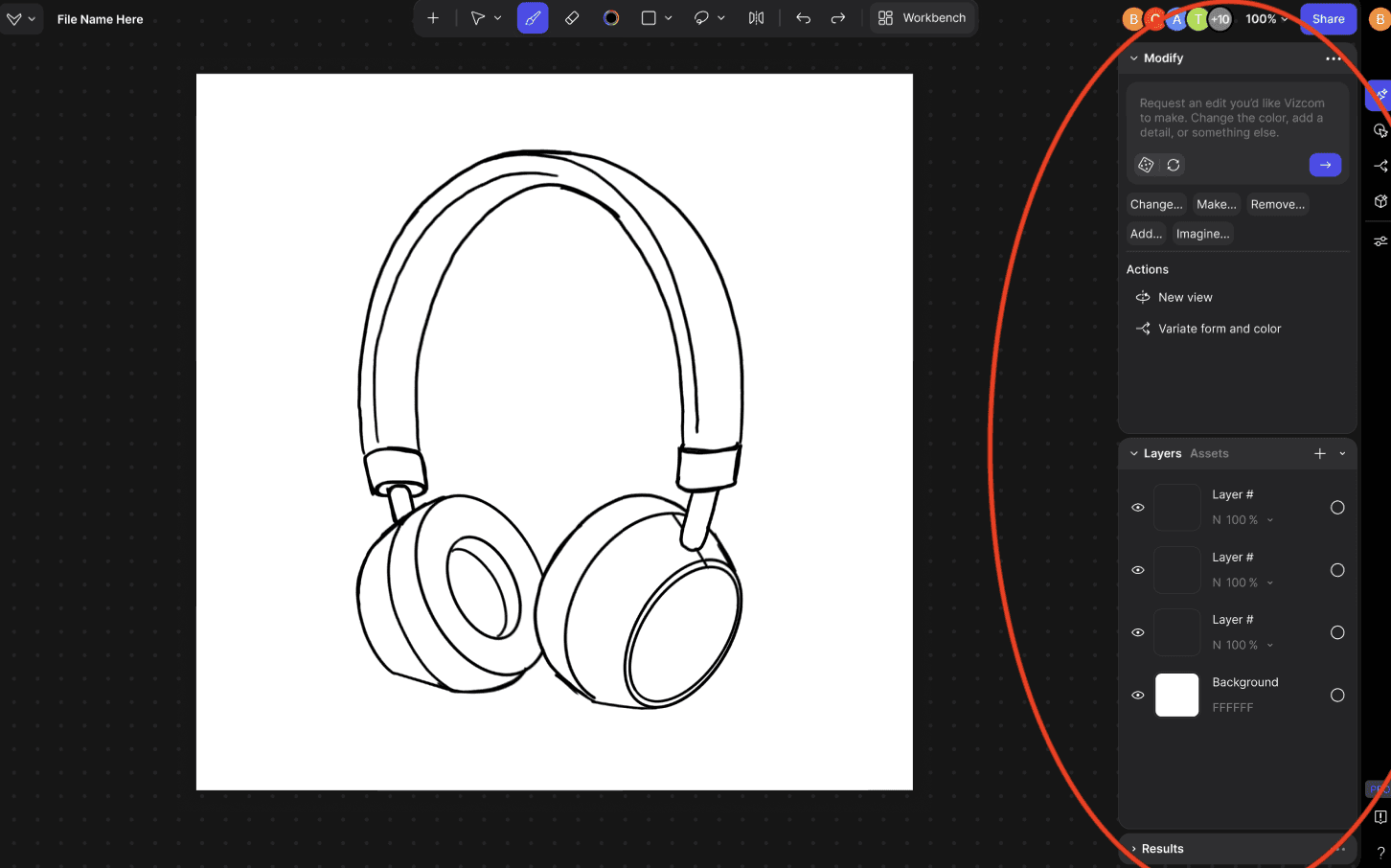

Stacked: Panels are condensed into a single vertical stack — ideal for smaller screens or focused workflows. Panels can be collapsed if not in use.
Custom: Fully personalize your setup by resizing, collapsing, or moving panels anywhere in Studio.
Accessing AI workflows
All AI workflows in Vizcom Studio are now located in a single, centralized sidebar for easier access and discovery.
How to Use the AI Workflow Panel:
1. Open the AI Workflow sidebar on the right-hand side of your Studio workspace.

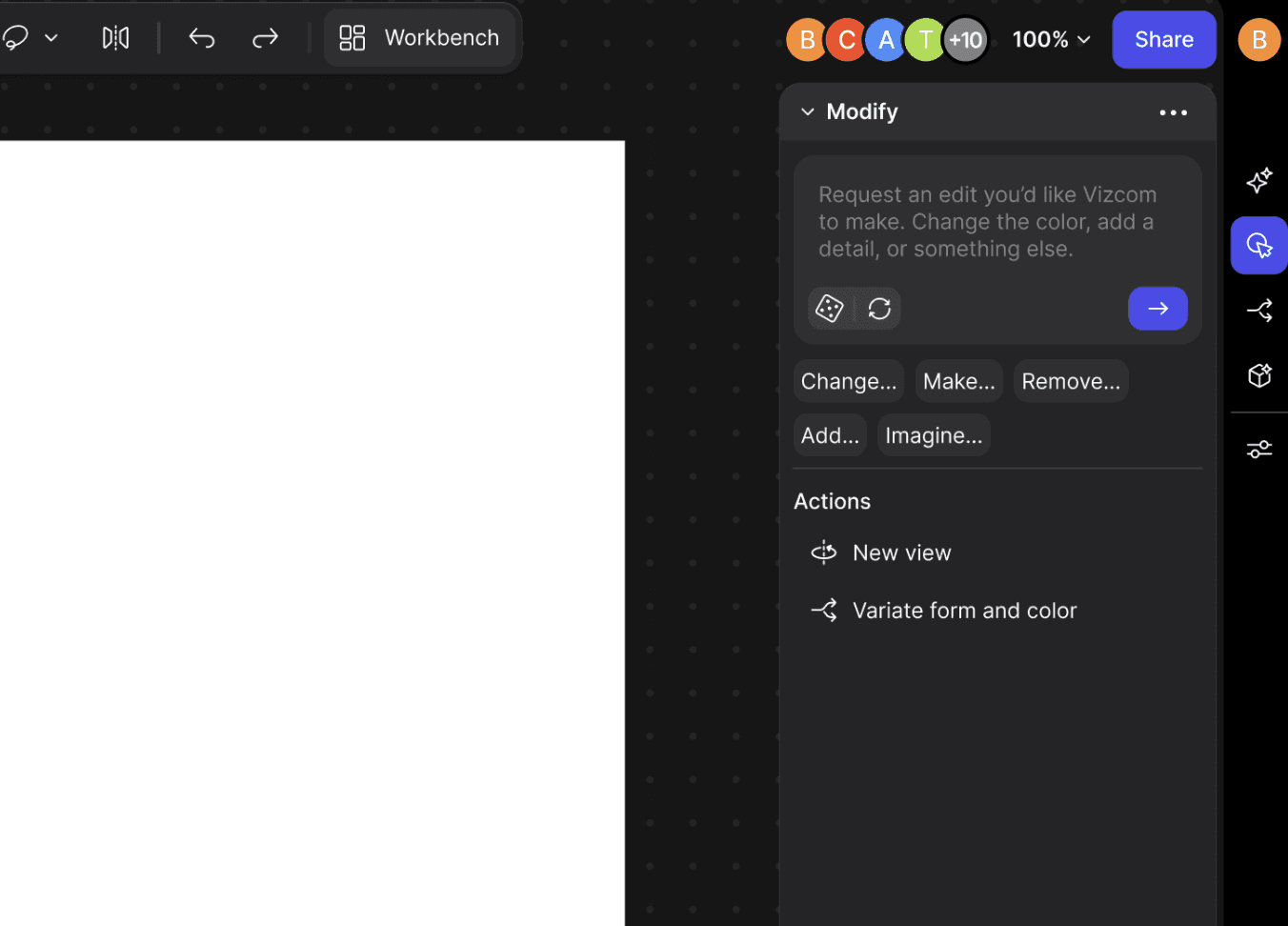

2. You’ll start in the Modify workflow by default — this is where you can quickly refine, iterate, or build on your existing designs.
3. From there, you can switch to other available workflows at any time, such as

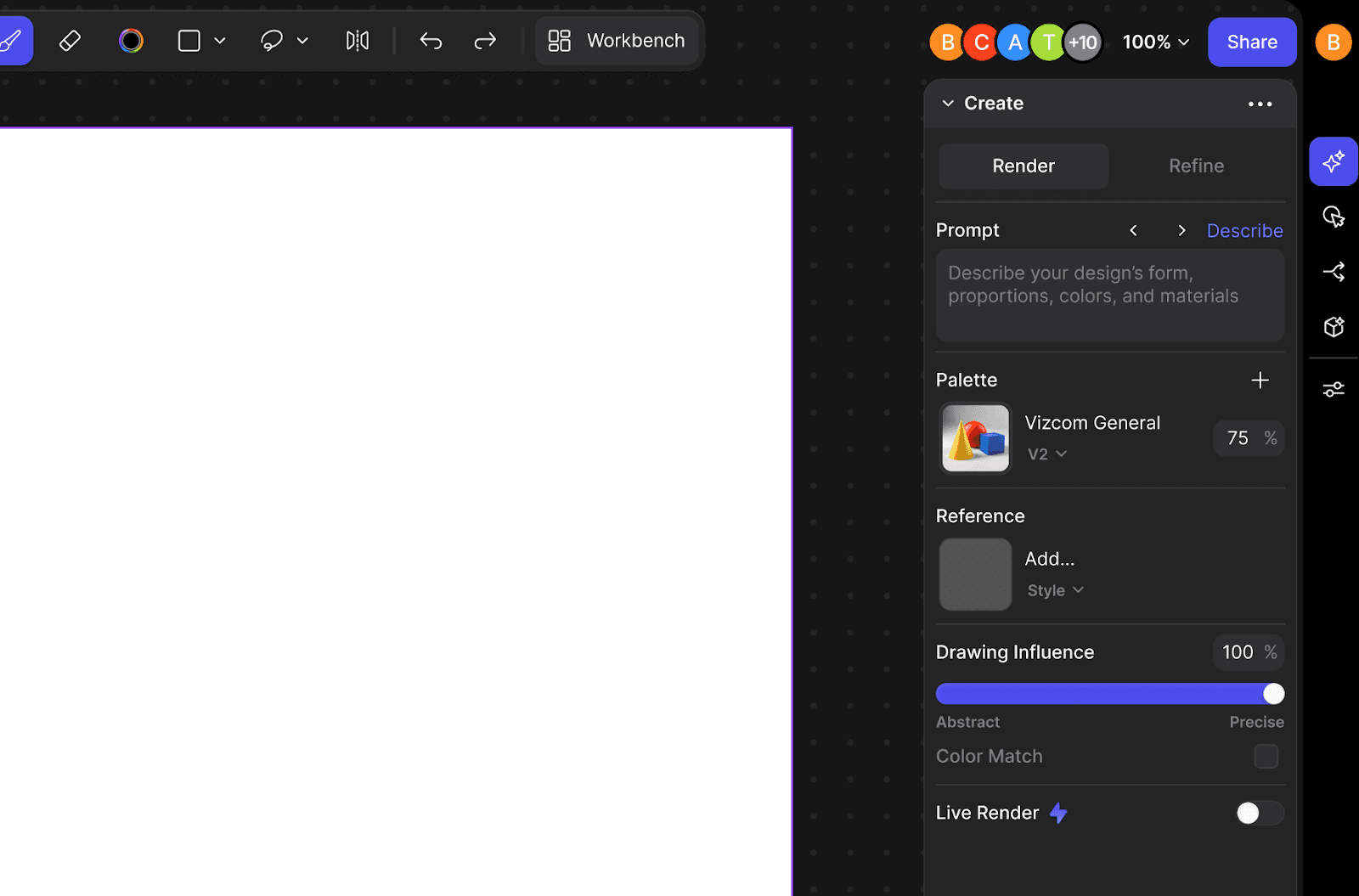

Create: Generate new visuals from sketches, text, or references.

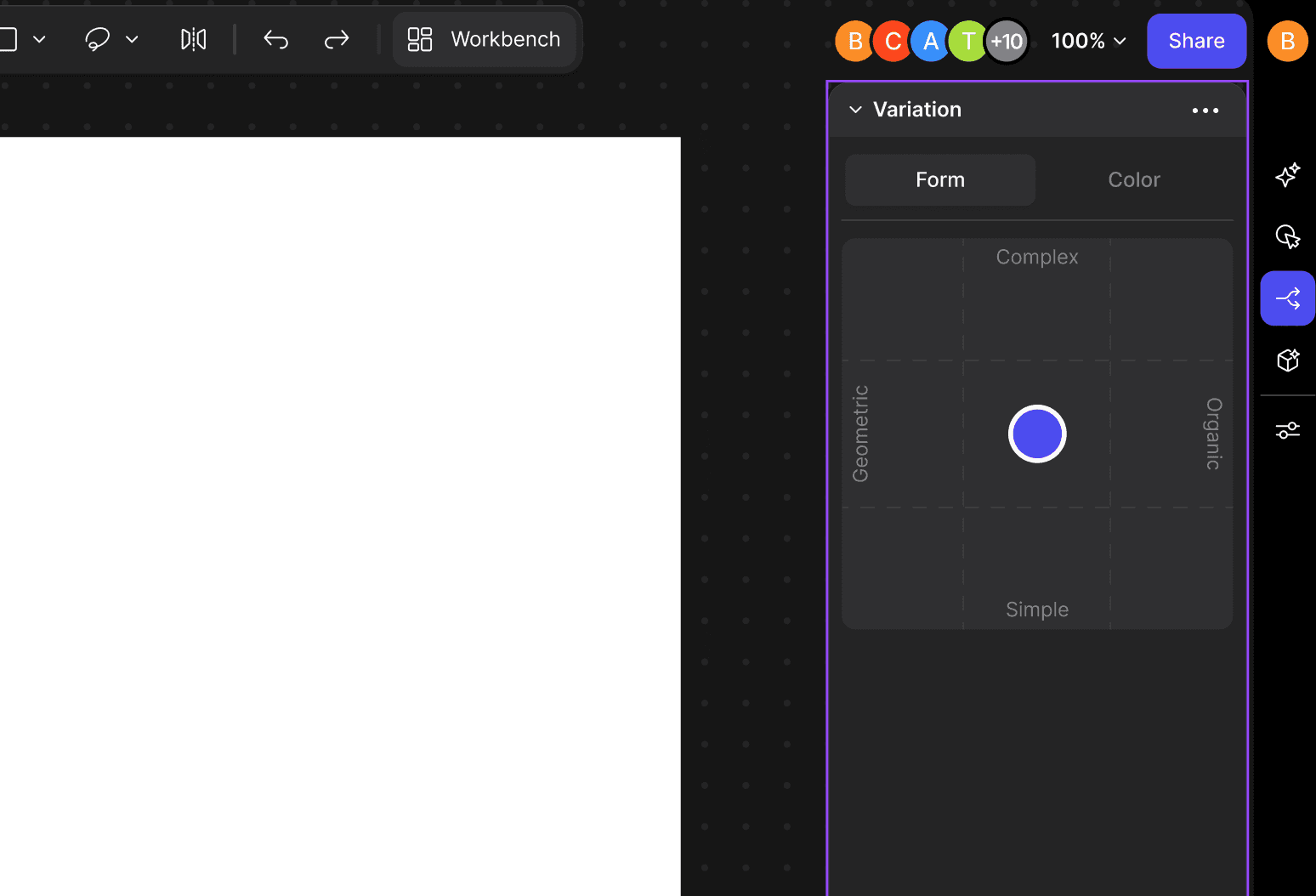

Variate: Quickly explore multiple design alternatives.

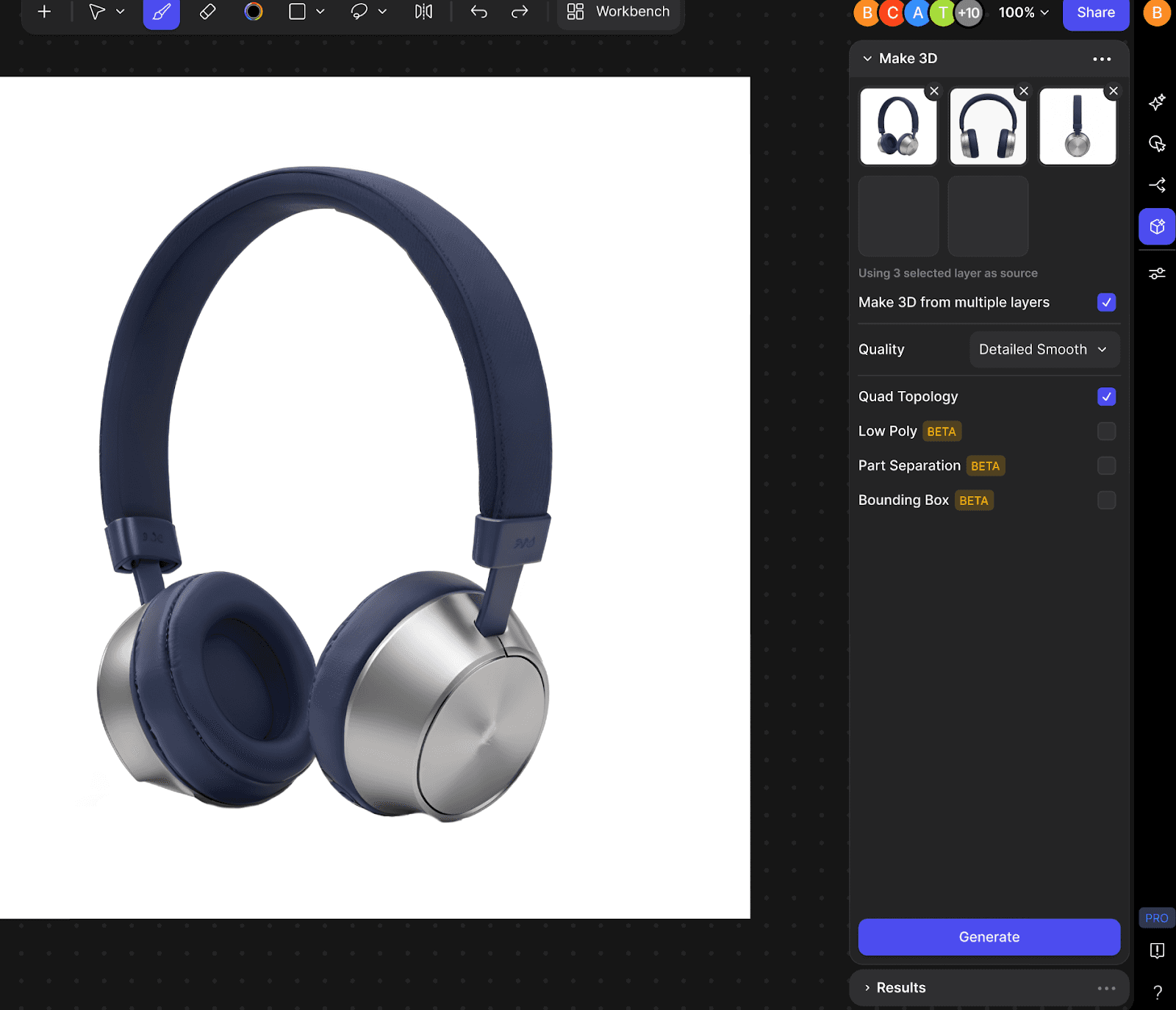

Make 3D: Transform your 2D sketches into 3D visualizations.

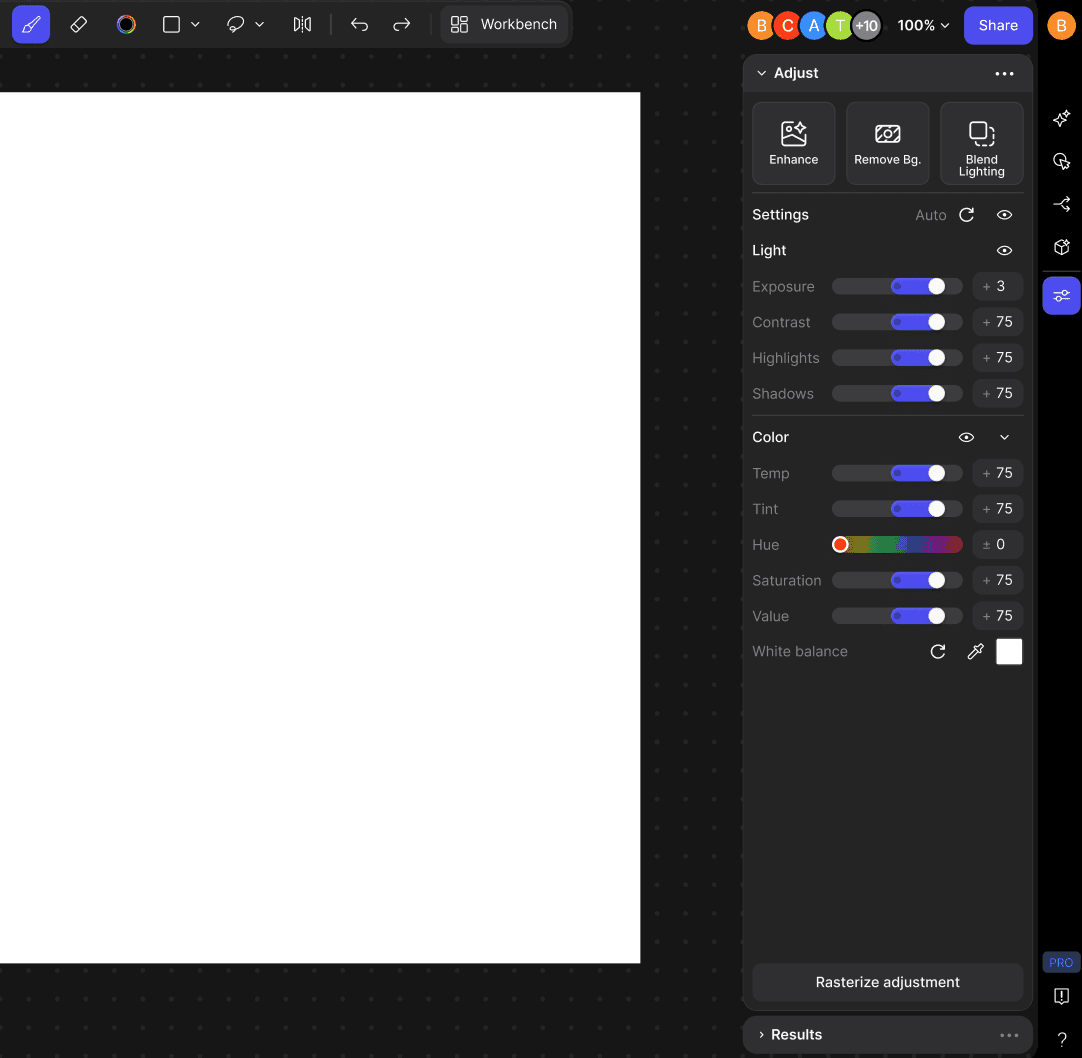

Adjust: Fine-tune material, lighting, or rendering properties.
4. Once selected, configure workflow options directly in the panel before running your generation.
Background generation & Viewing results with the Results Panel

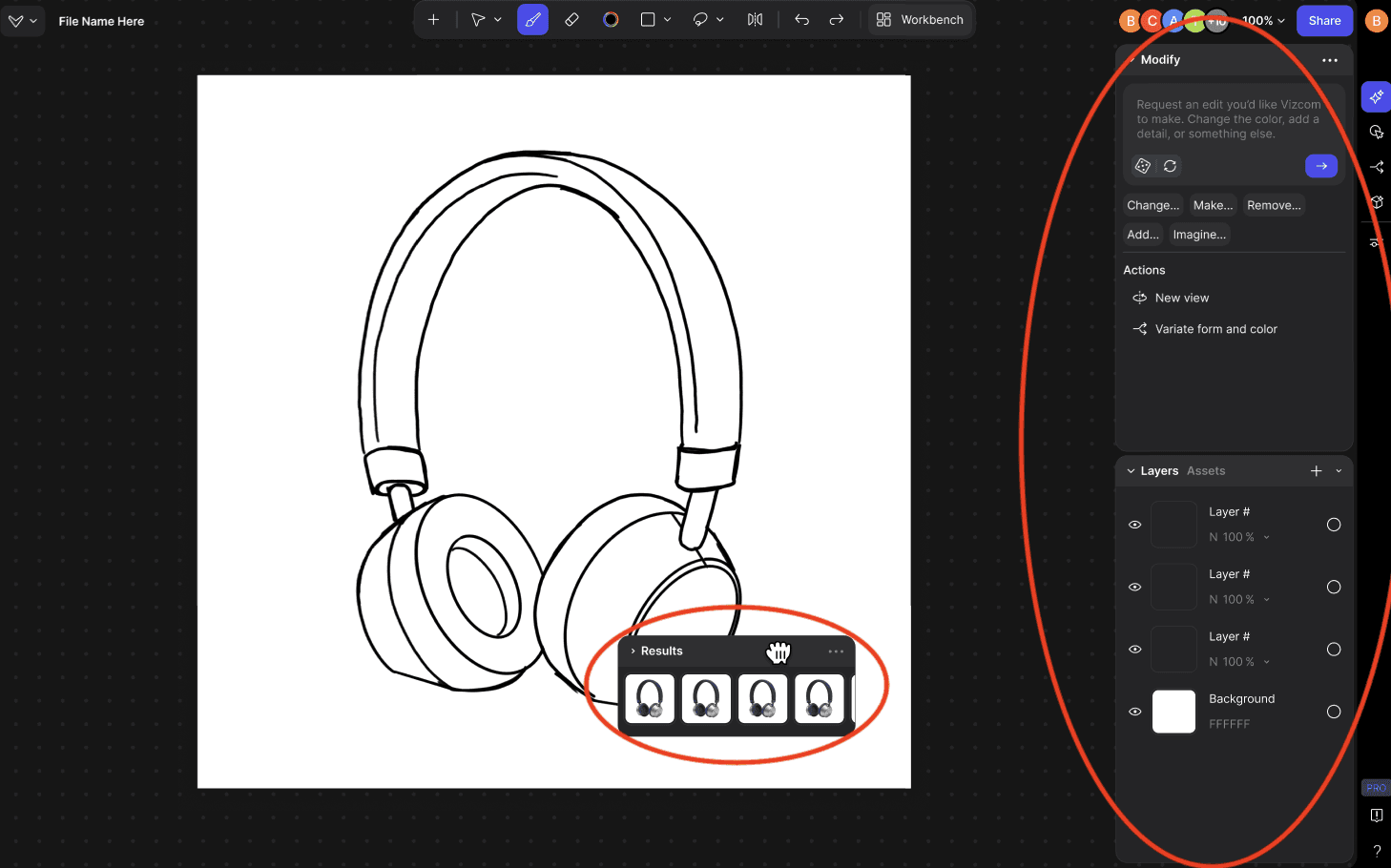

The Results Panel now allows you to view AI generations in real time without interrupting your design process.
How to Use the Results Panel:
Run a generation using any supported workflow.
While your generation runs, continue sketching or adjusting in the main canvas.
View progress and results in the Results Panel
Where Results Appear
Results Panel: Generations from Modify, Create, and Render workflows appear here for real-time viewing.
Layers Panel: Generations from the Make 3D workflow appear as new 3D layers within your project.
